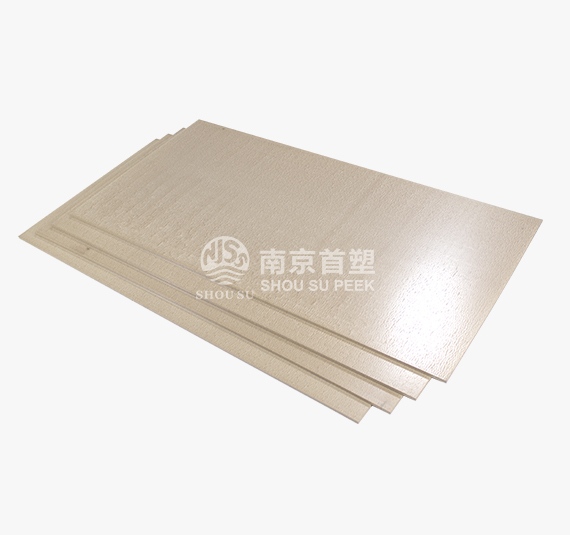

NJSPEEK-G1030 board is produced by continuous extrusion using polyetheretherketone resin and 30% glass fiber as raw materials. NJSPEEK-G1030 board has better rigidity and creep resistance, as well as better dimensional stability, making it ideal for manufacturing structural parts.
Nanjing Shousu has the independent extrusion production capacity of PEEK sheets. The thickness range of PEEK sheets produced by us is between 1~150mm, and customized processing can be made according to customer requirements. Nanjing Shousu has the production capacity of PEEK sheets of different specifications and sizes, Large inventory available all year round.
| Thickness * width * length(mm) | Weight(kg) | Thickness * width * length(mm) | Weight(kg) |
|---|---|---|---|
| 1*610*1220 | 1.100 | 25*610*1220 | 26.330 |
| 2*610*1220 | 2.110 | 30*610*1220 | 31.900 |
| 3*610*1220 | 3.720 | 35*610*1220 | 38.480 |
| 4*610*1220 | 5.030 | 40*610*1220 | 41.500 |
| 5*610*1220 | 5.068 | 45*610*1220 | 46.230 |
| 6*610*1220 | 6.654 | 50*610*1220 | 53.350 |
| 8*610*1220 | 8.620 | 60*610*1220 | 62.300 |
| 10*610*1220 | 10.850 | 100*610*1220 | 102.500 |
| 12*610*1220 | 12.550 | 120*610*1220 | 122.600 |
| 15*610*1220 | 15.850 | 150*610*1220 | 152.710 |
| 20*610*1220 | 21.725 | ||
Note:This table shows the specifications and weight of PEEK-1000 sheet (pure), and the above specifications of PEEK-C1030 sheet (carbon fiber), PEEK-G1030 sheet (glass fiber), ESD PEEK sheet and AST PEEK sheet can be produced.The actual weight is subject to weighting. | |||
