PEEK bolts can be formed in one time by mans of injection technology, in which the processing cost is low, and the price is superior. It is more corrosion resistant than metal screws, and featured with non-rusty property, light weight, high temperature resistant, excellent electrical performance, and irradiation resistance. Large inventory available all year round. Nanjing Shousu produces PEEK screws of the following specifications:
1. PEEK Hexagon slotted screw.

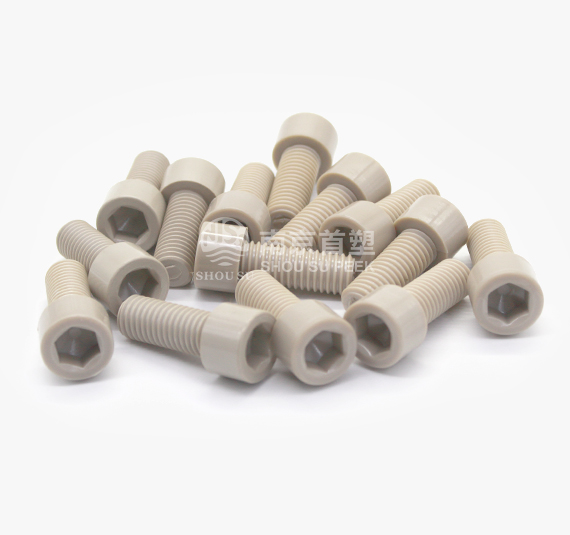

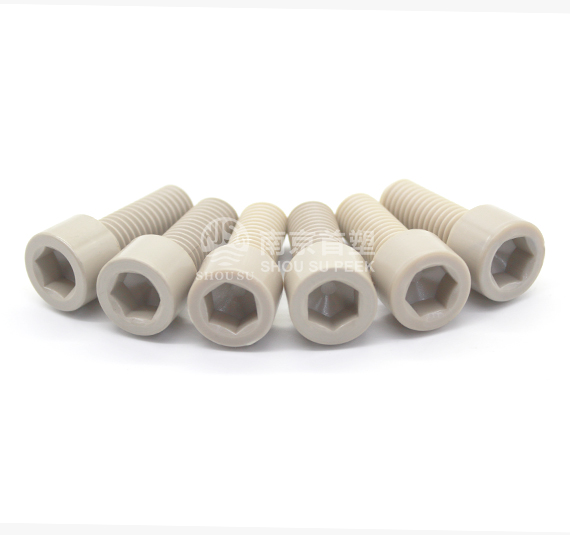

2. PEEK Socket head cap screw.
3. PEEK Hexagon screw.
4. PEEK Hexagon socket set screw.
5. PEEK Pan head phillips screw.
6. PEEK Pan head slotted screw.
7. PEEK Countersunk head slotted screw.
8. PEEK Countersunk head phillips screw.
9. PEEK Cylindrical head slotted screw.
10. PEEK nut.
11. All kinds of PEEK screws, nuts, cap nuts, screws and bolts can be customized.
| Type | Specifications(mm) | Type | Specifications(mm) |
|---|---|---|---|
| Hexagon screw | M4X10 | Socket head cap screw | M2X8 |
| M4X15 | M3X5 | ||
| M4X20 | M3X20 | ||
| M5X8 | M4X10 | ||
| M5X10 | M4X15 | ||
| M5X15 | M4X20 | ||
| M5X20 | M5X8 | ||
| M5X30 | M5X10 | ||
| M6X16 | M5X15 | ||
| M6X20 | M5X20 | ||
| M6X25 | M5X30 | ||
| M6X30 | M5X35 | ||
| M6X40 | M6X10 | ||
| M8X15 | M6X16 | ||
| M8X20 | M6X20 | ||
| M8X25 | M6X25 | ||
| M8X35 | M6X30 | ||
| M8X40 | M6X35 | ||
| M8X50 | M6X40 | ||
| M10X25 | M6X50 | ||
| M10X30 | M8X20 | ||
| M10X40 | M8X25 | ||
| M10X45 | M8X35 | ||
| M10X50 | M8X50 | ||
| M10X65 | M10X25 | ||
| M12X25 | M10X30 | ||
| M12X35 | M10X40 | ||
| M12X50 | M10X45 | ||
| M12X60 | M12X25 | ||
| M12X65 | M12X30 | ||
| M12X110 | Countersunk head phillips screw | M3X10 | |
| Pan head slotted screw | M2.5X8 | M4X15 | |
| M2.5X14 | M5X12 | ||
| Pan head phillips screw | M3X10 | M5X17 | |
| M4X10 | M5X20 | ||
| M4X15 | M5X25 | ||
| M4X20 | M6X50 | ||
| M4X30 | M8X50 | ||
| M4X40 | Hexagon slotted screw | M4X10 | |
| M5X8 | M4X15 | ||
| M5X10 | M6X10 | ||
| M5X15 | M6X15 | ||
| M5X20 | M6X20 | ||
| M5X30 | M6X25 | ||
| M5X35 | M6X35 | ||
| M6X10 | M8X20 | ||
| M6X15 | Cylindrical head slotted screw | M5X8 | |
| M6X20 | M5X10 | ||
| M6X25 | M5X15 | ||
| M6X30 | M5X20 | ||
| M6X50 | M5X30 | ||
| M8X15 | M6X10 | ||
| M8X25 | M6X15 | ||
| M8X30 | M6X20 | ||
| M8X35 | M6X25 | ||
| M8X45 | M6X40 | ||
| Countersunk head slotted screw | M5X8 | M10X20 | |
| M5X12 | Hexagon socket set screw | M5X8 | |
| M5X17 | M6X10 | ||
| M6X10 | M8X10 | ||
| M6X18 | M8X15 | ||
| M4X10 | M8X20 | ||
| M6X18 | |||
| M6X33 | |||
| M6X43 |
